15KVA Generator 3 Phase-12KW Generator Catalogue

GENERATOR SET SPECIFICATIONS

Gensets		ENGINE		Alternator		Customization		Option
Rated Power	15KVA/12KW	Engine Model	4DW81-23D	Alternator Model	VG-164D	Voltage:	110V-660V	ATS
Standby Power	17KVA/13KW	Brand	FAW	Rated power:	12.8KW	Phase:	Single Phase/ Three Phases	Remote Control
Frequency	50Hz	Engine Power	17KW	Standby Power:	18KW	Alternator:	Stamford/ Leroy Somer/Marathon	Charger
Speed	1500 RPM	Cylinder	4	Insulation Class:	H	Control Panel:	Smartgen/Deep sea	Jacket Heater
Fuel	Diesel	Fuel Consumption	228g/kW·h	Protection Class:	IP23	Fuel Tank Volume:	According To Requirements	Oil Heater
Digital Controller	Standard	Displacement	2.16 L					Trailer

DOWNLOAD DATA SHEET

Gensets	Download
Diesel Generator Set Data Sheet	EM-F17 DG data sheet.pdf
Engine Data Sheet	FAWDE Engine 4DW81-23D Data Sheet.pdf
Alternator Data Sheet	Alternator VG-164D 18KVA 50HZ.pdf

EMEAN POWER 15kVA 3-Phase Diesel Generator — Industrial-Grade Performance, Unmatched Reliability

Built to endure heavy use and deliver consistent power, the EMEAN POWER 15kVA diesel generator is the top choice for workshops, farms, construction sites, and small industrial facilities requiring robust three-phase capability. Powered by the dependable FAW 4DW81-23D engine — a 4-cylinder, 2.16L water-cooled diesel power — this generator set combines high torque, low fuel consumption, and exceptional durability. This model delivers 15KVA continuous power and 17KVA standby power, running at 1500 RPM with a 50Hz output. It is available in both single and generator 3 phase configurations, making it ideal for operating machinery, motors, pumps, and other three-phase loads. With a fuel consumption rate as low as 228g/kWh, it offers remarkable efficiency without compromising on output. The generator is paired with a VG-164D alternator (compatible with Stamford, Leroy Somer, or Marathon designs) and supports a wide voltage range from 110V to 660V. Its generator 3 phase version ensures balanced power distribution, making it suitable for professional and commercial environments where voltage stability is critical.

Features include:

IP23 protection and Class H insulation

Optional ATS, remote monitoring, and trailer mounting

Cold-start packages with oil and jacket heaters

Designed for ease of use and built to last, this generator 3 phase unit meets CN Stage II emissions standards and comes with full customization support. For those in need of a compact yet powerful generator 3 phase solution, EMEAN POWER offers reliability you can count on.

FEATURES

1.Power by Brand new water cooled diesel engine
2.Brushless alternators (Class H, with AVR)
3.Working condition: 0℃～+40℃ (Antifreeze system needed if below 0℃)
4.Base frame fuel tank for continue 8-10hrs running
5.Digital control panel with auto protection
6.MCCB air circuit breaker for over current shutdown
7.Industrial silencer for silent type generator sets
8.Humanized design, simple operation, easy maintenance
9.Ventilation parts are designed with modular principles
10.Soundproof canopy which lined with sound reducing foam
11.All metal canopy parts are painted by powder foam
12.Glass Panel window
13.Lockable doors on front and back side for easy maintenance
14.Easy maintenance and operation
15.Easy lifting and moving, there is forklift hooks and crane holes on chassis
16.External emergency stop button
17.Steel chassis and anti-vibration pads
18.Includes diesel level sensor information to the controller

EMEAN POWER is a well-established enterprise with three subsidiaries: Fuzhou Emean Electric Machinery Co., Ltd., Fujian Epos Electric Machinery Co., Ltd.and Fujian Epos Technology Co., Ltd. Currently, we have two factories and one factory under construction.

To date, we have established cooperative relationships with more than 10,000 customers, and our business covers more than 100 countries and regions around the world.

Learn more

EXHIBITION SITE

Learn more

GENERATOR 3 PHASE

DETAILS

generator 3 phase

generator 3 phase details

generator 3 phase main parts

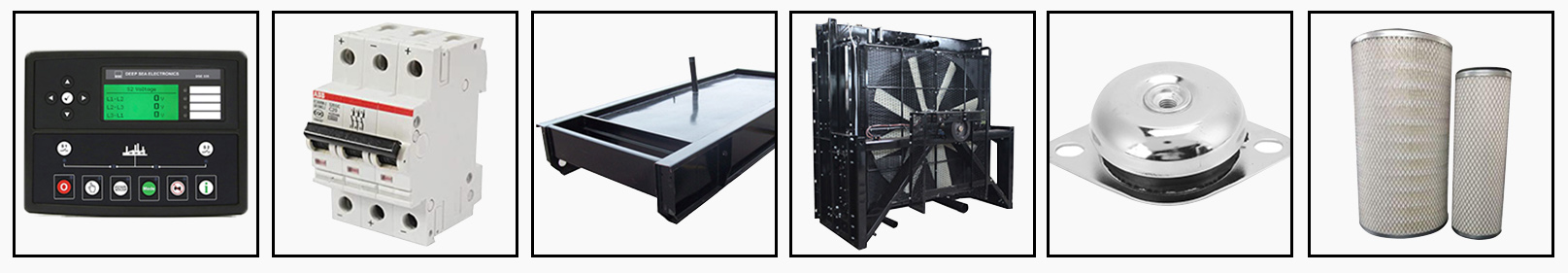

Digital control panel	Electronic Components	Thicken Chassis	Corrosion Resistant Radiator	Solid Damping Foot	Filter
Integrated digital, intelligent technology, compact structure, simple wiring, high reliability.	Cooperate with well-known electronic component manufacturers such as DELIXI and CHINT to provide customers with long-life,high-quality and very accurate machines	5MM thickened bent chassis, double-layer painting, improve corrosion resistance. Prevent the unit chassis from being corroded	High quality and low noise radiators, with anti-rust paint to add, ensure that your machine will never old, mildew, corrosion resistance, safety.	Solid damping foot is stamping forming by 3-5 mm high strength steel plate, with metal cover to protect rubber.	More than 99.5% of filtration efficiency

generator 3 phase parts choose

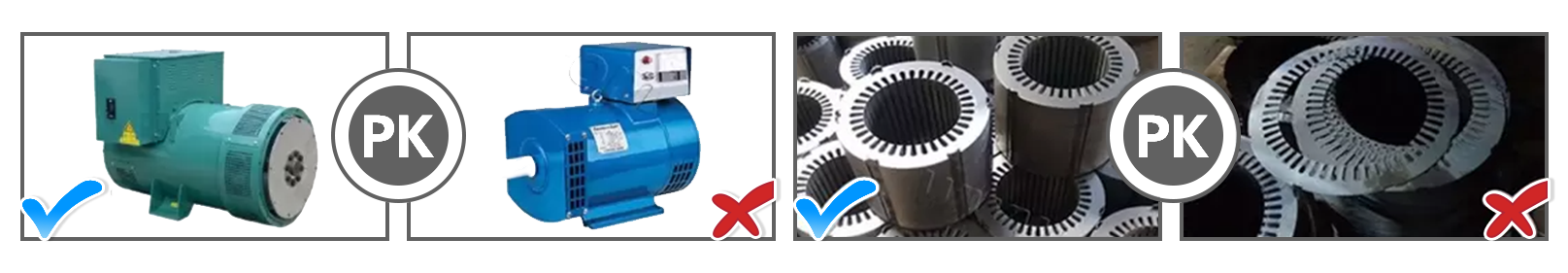

Our alternator:	Other factory alternator:	Our silicon steel sheet:	Other factory alternator:
100% copper wire brushless alternator Or original STAMFORD alternator.	Brush alternator with low quality.	Use high quality cold rolled silicon steel sheet	Use low quality hot rolled silicon steel sheet

generator 3 phase parts choose

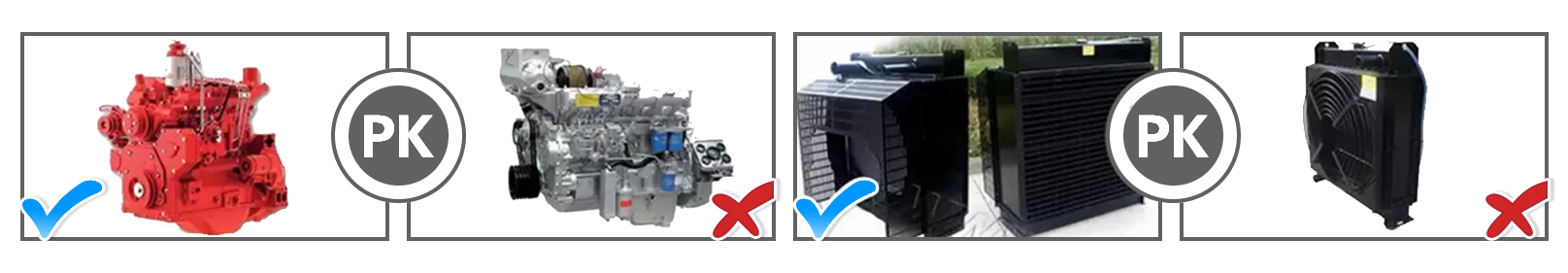

Our engine:	Other factory engine:	Our Radiator:	Other Radiator:
Branded powerful engine,with global warranty service.	No Certified, no quality guarantee.	High quality and low noise radiators, with anti-rust paint to add, ensure that your machine will never old, mildew, corrosion resistance, safety.	Low quality, high noise radiator, parameter falsification

We use advanced full welding technology to carefully weld the plates to ensure that the welds are firm and tight without any gaps. We use thickened plates to enhance the overall firmness and stability. The bending arc is extremely natural and smooth without any sense of stiffness. All rounded corners are smooth and flat, with a delicate touch, showing extremely high craftsmanship and exquisite quality.

generator 3 phase canopy technology

SALES CASE

generator 3 phase sales case

Learn more

CERTIFICATES

generator 3 phase certification

Learn more

GENERATOR 3 PHASE

STYLES

EMEAN POWER has more than ten years of production experience and has accumulated a wide variety of generator set styles and shapes. In addition, styles and color can be customized according to customer needs.

generator 3 phase style

generator 3 phase evaluation

You Are Currently Here! > Home > GENERATOR LIST > Diesel Generator > Standard Type > FAW 12KW-352KW > 15KVA Generator 3 Phase-12KW Generator Catalogue

15KVA Generator 3 Phase-12KW Generator Catalogue

MOQ: 1set
Payment: T/T, L/C,Credit Card
Shipment: 30 days for production or 3days for stock
Package Instruction：Foam film wrapping/Export wooden box
Customized Service: Support(Color, Logo, Style...)
Qualification: ISO9001,CE, SASO
Warranty: 1 year / 1200 running hours
